SPECIFICATIONS



AC Charger: 16V 5A



AC Output Frequency: 60Hz ±0.5Hz

AC Output Socket: Universal Socket

AC Output Voltage: 110V ±5%

Battery Capacity: 12.8V 256Wh/460.8Wh

Charging Current: 6A

Conversion Efficiency: Maximum Value>90%

DC Output Voltage: USB 5V 2.4A,QC3.0,PD 45W,DC 12V 8A,3xDC5521 Port

Electric: Yes

Feature 1: Portable Power Station

Feature 2: LiFePO4 Charging Station

Feature 3: Power Plant

High-concerned chemical: None

LCD: Battery Capacity, Battery Voltage, State of Charge, State of Discharge

LED Light States: LED high beam, low beam, bright, half-bright, flashing, LED off 6 states,LiFePO4

Material: Plastic

Output Waveform: Pure sine wave

Rated Power: 300W/500W

Type: Power bank

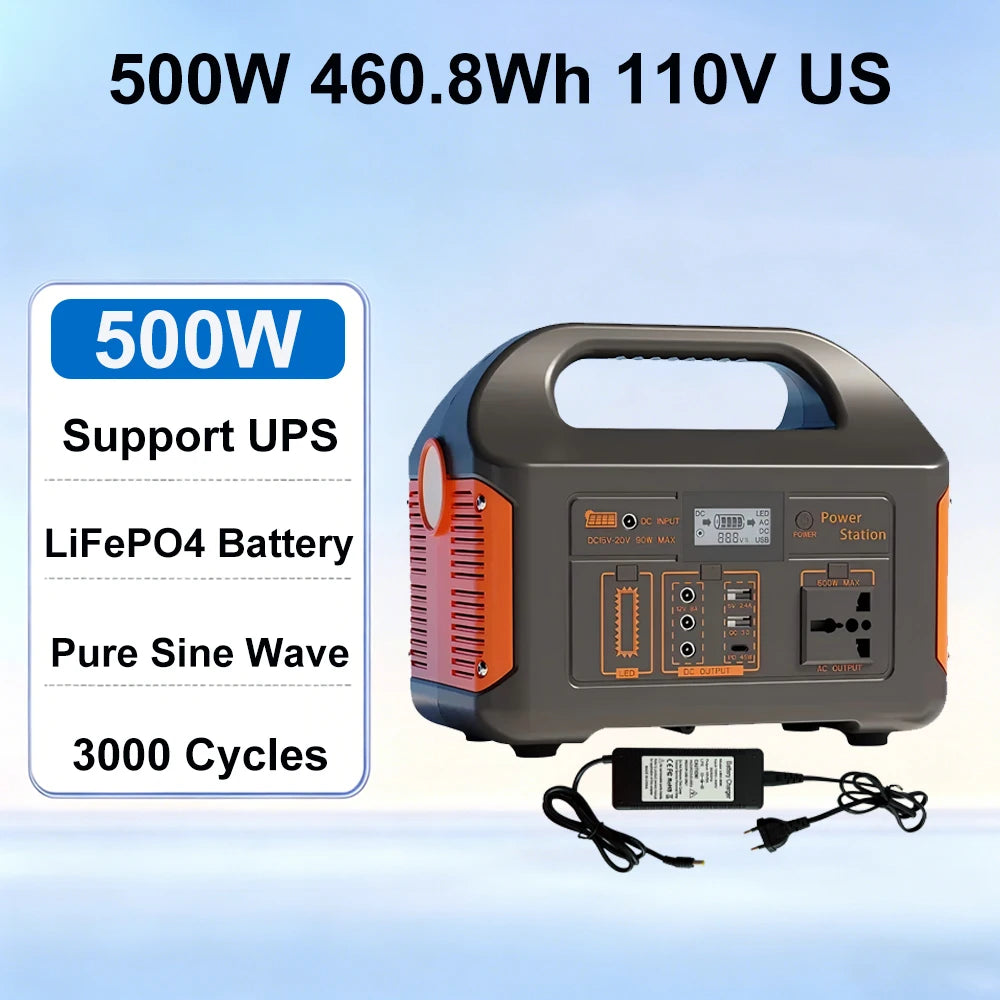

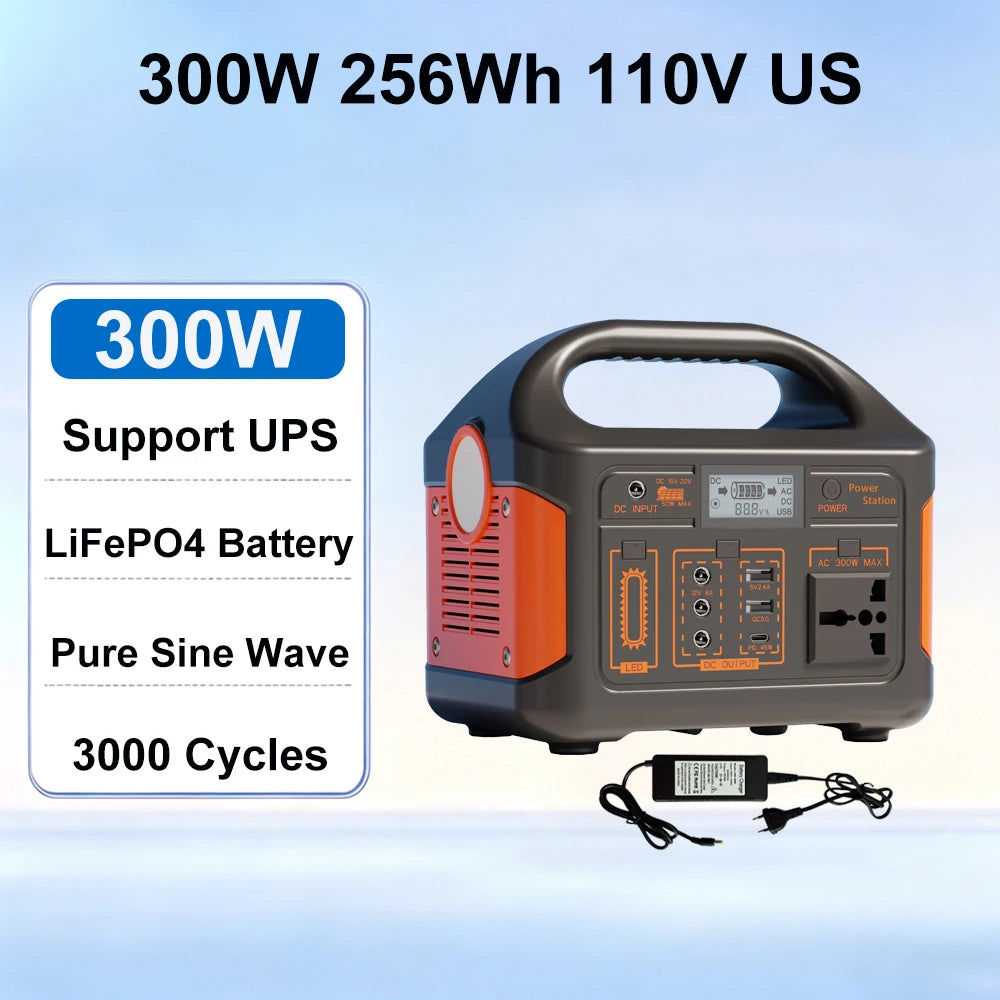

300W 500W Portable Power Station 110V AC Solar Generator Pure Sine Wave Lifepo4 Battery 256Wh 460.8Wh Power Plant Power Bank UPS With LED Light For Camping Home



300W 500W Power Station:

1. Rated Power：300W/500W
2. Output Waveform: Pure Sine Wave
3. AC Output Voltage: 110V ±5%
4. AC Output Frequency: 60Hz ±0.5Hz
5. Conversion Efficiency: Maximum Value>90%
6. Charging Interface: External Charger Port and Solar Panel Charging Port DC5521*1(Built in solar intelligent controller)
7. AC Output Socket: Universal Socket
8. DC Output Voltage: USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port；
9. LED Light States：LED high beam, low beam, bright, half-bright, flashing, LED off 6 states
10. Battery Type：LiFePO4
11. Battery Capacity：12.8V 256Wh/460.8W
12. Solar Panel Specifications (optional)：15V-20V Maximum 90W (Optional)
13. Charging Current：6A
14. AC Charger ：16V 5A
15. Charging Time：After full discharge, the battery capacity reaches 80% after 5 hours of charging
16. LCD ：Battery Capacity, Battery Voltage, State of Charge, State of Discharge
17. Heat Dissipation：Intelligent Temperature Control Cooling Fan，
Noise 1 Meter Distance < 45 dB
18. Protection Functions：Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit

Rated Power	300W	500W
Output Waveform	Pure Sine Wave	Pure Sine Wave
AC Output Voltage	110V ± 15%
AC Output Frequency	60Hz ± 2Hz
Conversion Efficiency	Maximum Value>90%
Charging Interface	External Charger Port and Solar Panel Charging Port DC5521 * 1 (Built in solar intelligent controller)
AC Output Socket	Universal Socket
DC Output Voltage	USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port	USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port
LED Light States	LED high beam, low beam, high brightness, half light, flashing, LED light off 6 states
Battery Type	LiFePO4
Battery Capacity	12.8V 256Wh	12.8V 460Wh
Solar Panel Specifications	15V-20V Maximum 50W (Optional)	15V-20V Maximum 90W (Optional)
Charging Current	Maximum Value 2.5A	Maximum Value 6A
AC Charger Specifications	14.6V 2A	16V 5A
AC Charger Charging Time	After full discharge, battery capacity reaches 80% after 5 hours of charging
LCD Display	Battery capacity, battery voltage, charging status, discharge status
Heat Dissipation	Automatic cooling
Protective Function	Low voltage, over voltage, overload, over temperature, over current short circuit
Operating Environment Temperature	-10 ~ 40 ℃
Operating Environment Humility	10 ~ 85%
Storage Environment Humility	5 ~ 90%
Net Weight(kg)	≈2.9kg	≈5.36kg
Product Size D * W * H(mm)	211*160*196	271*172*228

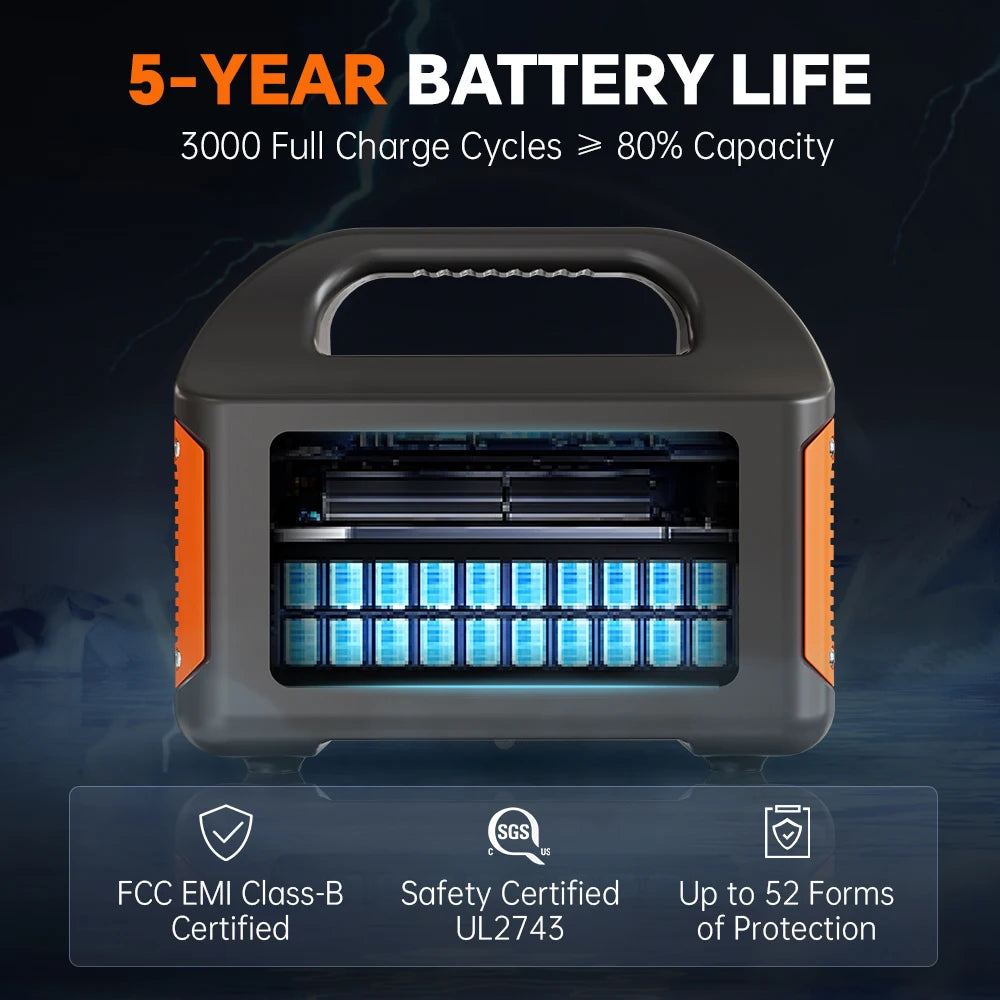

⚡【High-quality LiFePO4 Battery】

This 300W 500W power station is equipped with LiFePO4 batteries, ensuring over 3,000 charge-discharge cycles. The premium battery pack guarantees extended service life and safer operation.



⚡【Safety & Long Life 】

Advanced BMS technology provides multi-layered protection, featuring built-in overcharge, overload, overheat, and low-voltage protection functions. This ensures reliable operation and extends battery life, guaranteeing safe device charging and establishing a dependable backup power source.



⚡【Pure Sine Wave Output】

The power station delivers a pure sine wave output with stable, interference-free waveforms. It matches household mains power perfectly and is compatible with all devices.

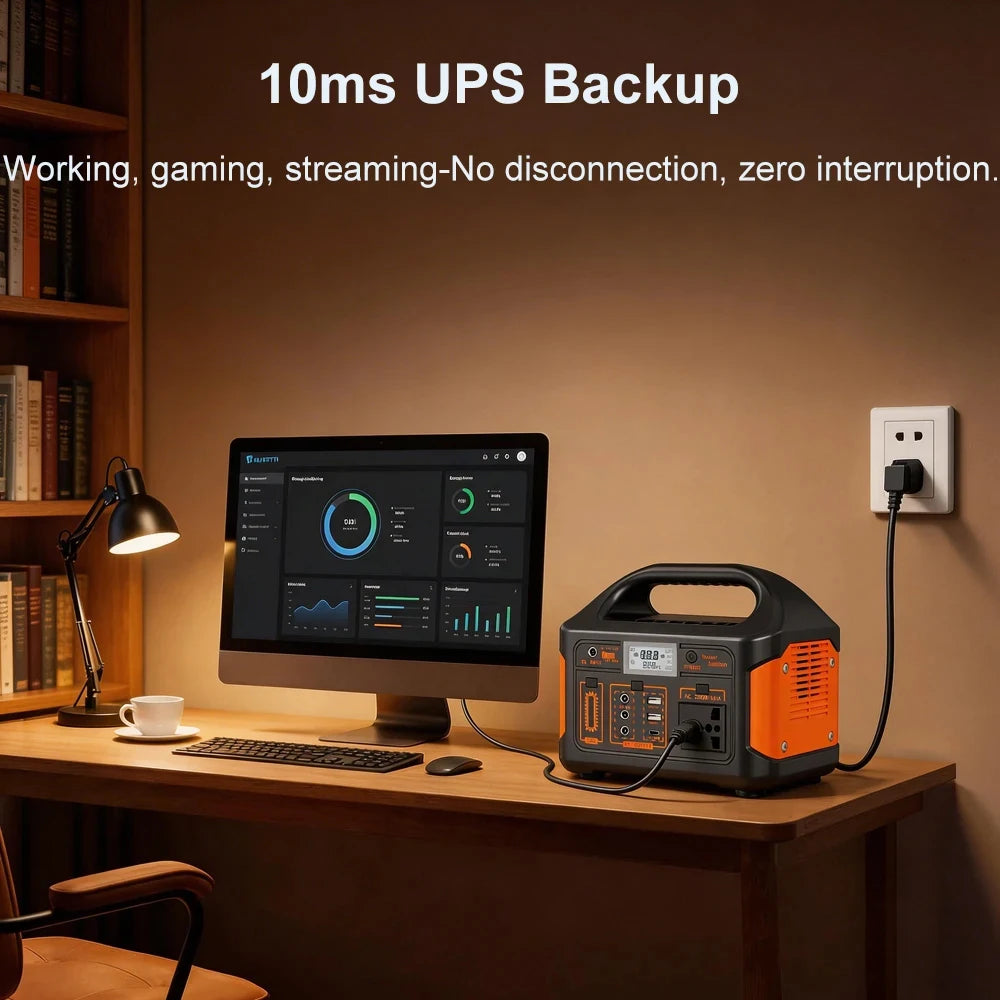

⚡【Provide Uninterruptible Power Supply】

The 300W 500W power station can serve as your emergency backup power source. When utility power fails, it automatically switches to battery power with a transition time of <10ms.

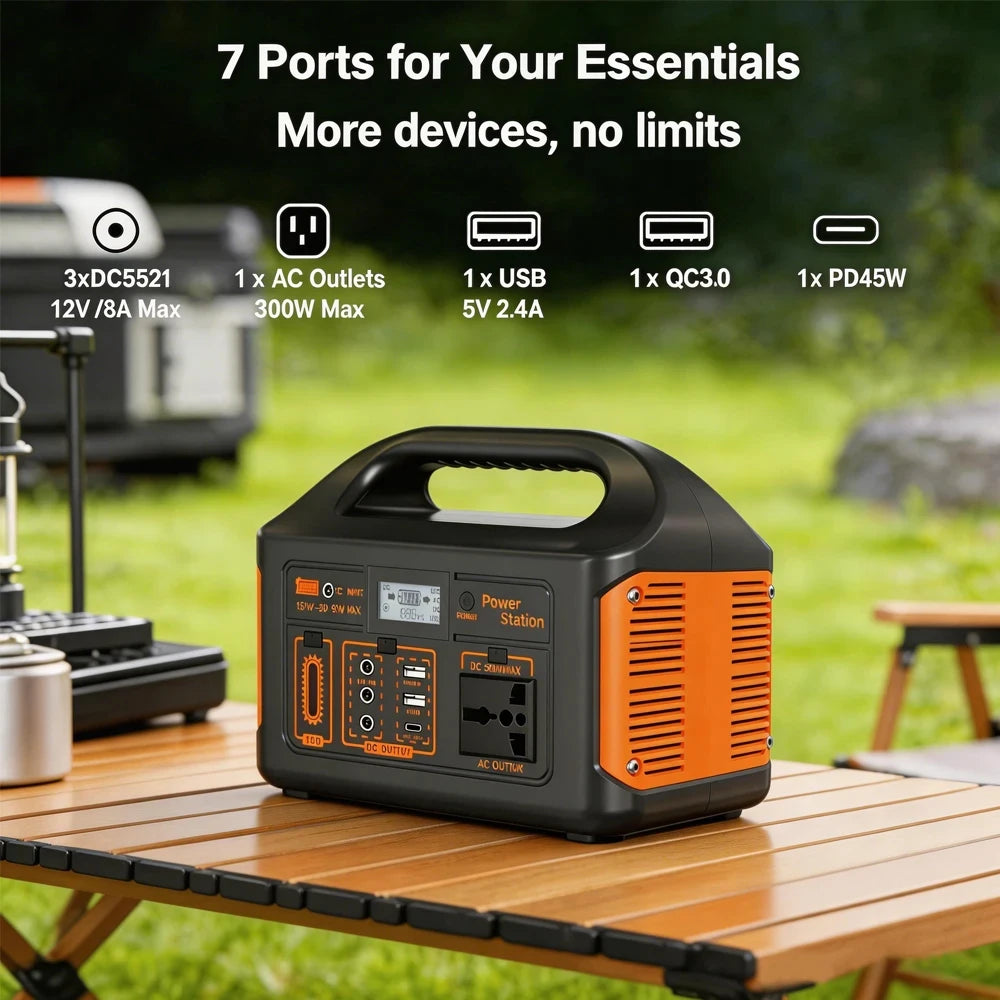

⚡【Multi-Port Design】

Equipped with 7 output ports to simultaneously power multiple devices, including:

- 1 USB 5V 2.4A port

- 1 QC3.0 port

- 1 PD 45W port

- 1 220V AC outlet

- 3 12V 8A DC5521 ports

Ideal for office use, travel, camping, power outage emergencies, and daily applications.

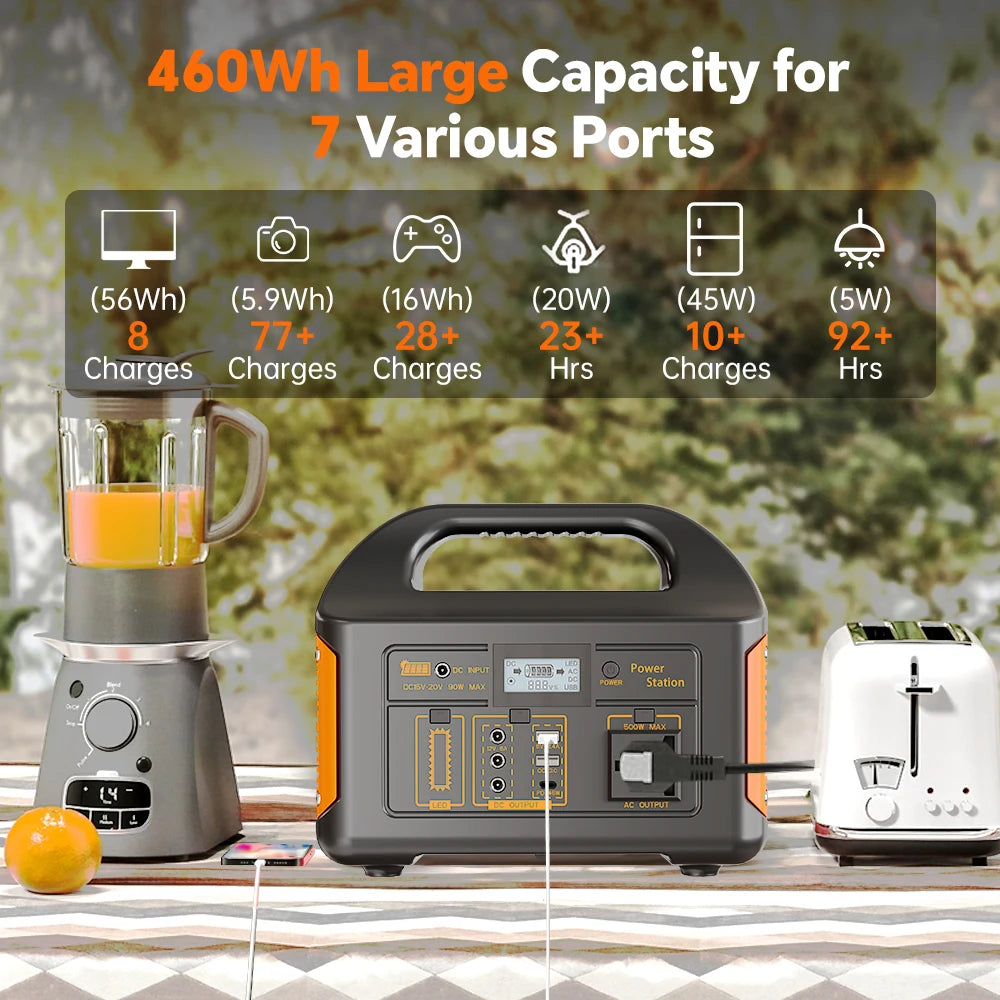

⚡【Large Capacity & Wide Range of Use】

This portable solar power station has a large capacity of 256W 460.8Wh, which can meet various application needs, from outdoor camping, self-driving tours, and household emergency needs during the power period. Anytime, anywhere, sufficient power.

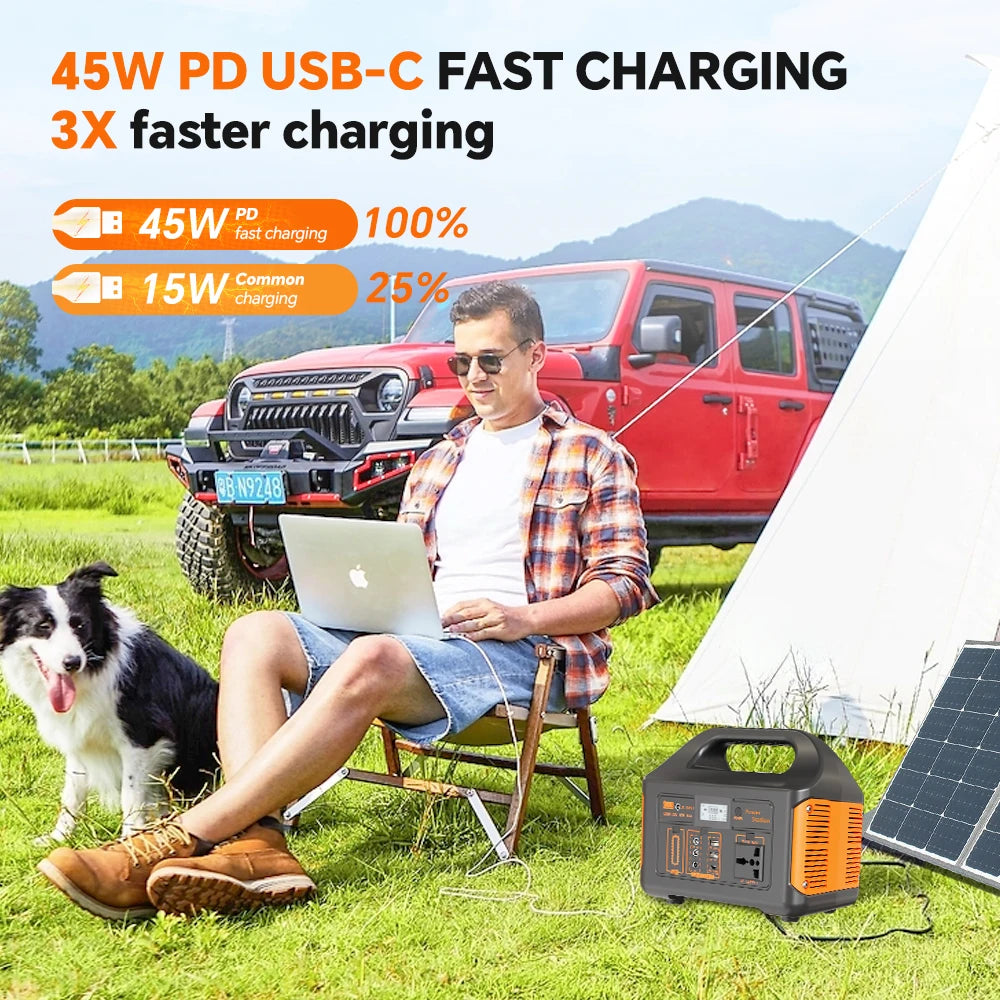

⚡【Fast Charging & Safe And Efficient】

This portable outdoor generator is known for its safety and efficiency. It supports PD 45W fast charging and includes multiple safety protections to ensure reliability and durability for outdoor use.

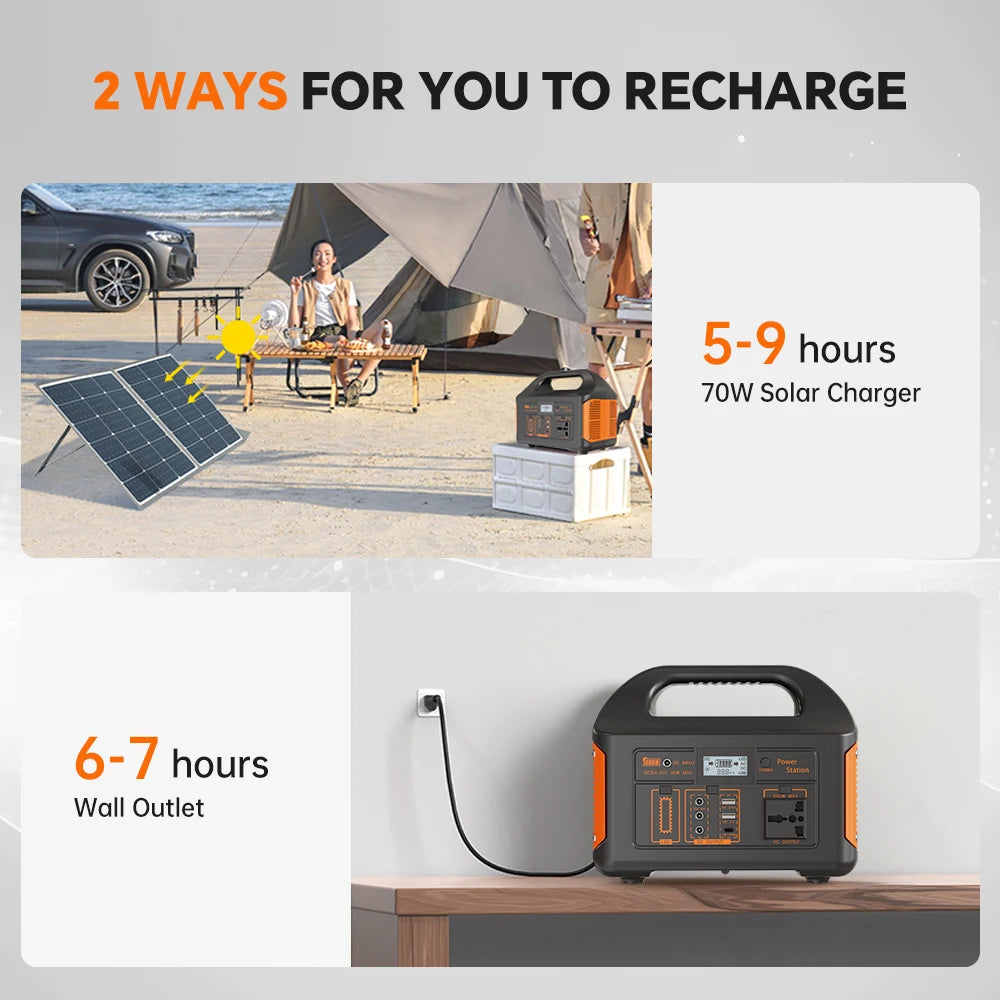

⚡【Multiple Charging Methods】

Support solar charging, mains charging and car charging, you can do whatever you want at any time.

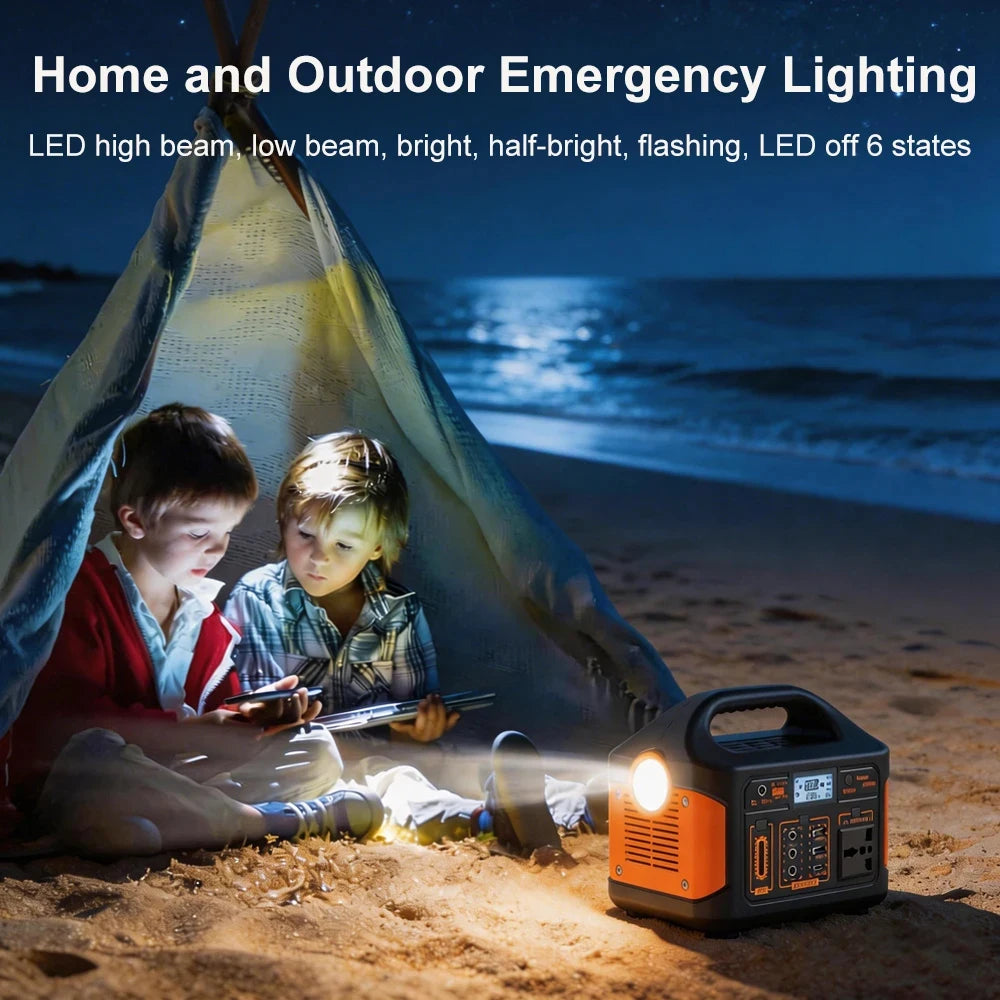

⚡【LED Lighting & Multiple Output Modes】

This outdoor power station features an LED lighting system with six operational modes: LED high beam, low beam, high brightness, half brightness, flashing, and LED off.



⚡【Excellent Workmanship】

The shell is made of high-quality ABS material, which is anti-collision and not easy to damage internal parts. Equipped with a high-definition display, you can check the battery status at any time, and it is equipped with an ultra-portable handle for easy carrying.



⚡【Intelligent Heat Dissipation & Noise Reduction】

Intelligent temperature-controlled cooling fan, <45 decibels at a distance of 1 meter, providing you with a more comfortable use experience.



⚡【Compact & Portable Design】

This outdoor power station features a more compact size and lighter weight while maintaining powerful functionality. Equipped with an ergonomic handle, it perfectly suits outdoor camping, travel, backyard camping, home, and office settings.



⚡【Multiple Application Scenarios】

300W 500W power stations are suitable for home emergency power and outdoor camping backup power. They are suitable for use in a variety of scenarios and can meet your power needs anytime and anywhere.

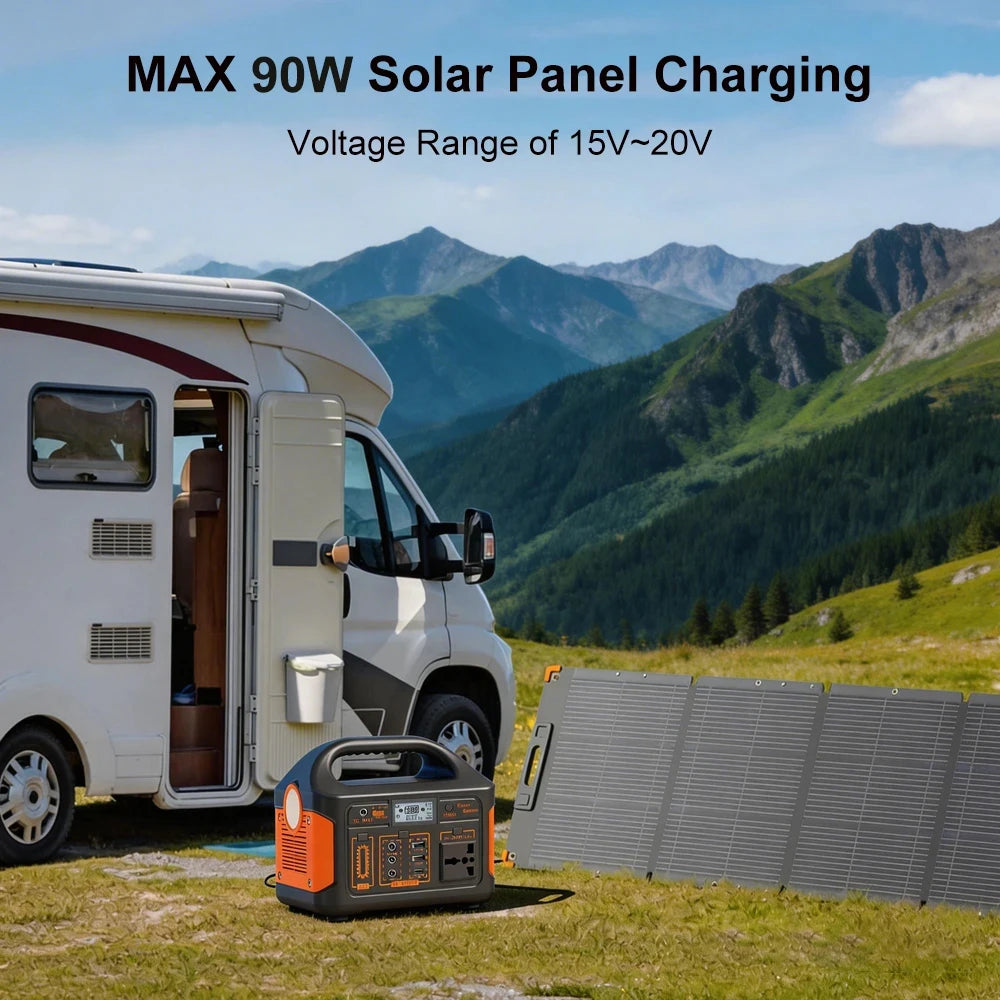

⚡【 Green Power Solution】

This power station supports solar panels up to 90W. Its built-in MPPT controller ensures the solar array consistently operates at maximum power point, accelerating battery charging. It serves as the ideal portable power solution for camping, off-road adventures, and similar scenarios.



⚡【Package List】

300W 500W Power Station*1
US Charger *1
Product Manual*1



⚡【Frequently Asked Questions】



Q1: What devices can the 500W power stations supply?



A: 500W power stations can charge/power devices with power ratings below 500W. The total power consumption of all connected devices must also remain below 500W. If power demand exceeds these limits, the power station will enter protection mode and automatically shut down. Always verify device specifications before purchase.



Q2: How do I calculate device runtime?



A: Use this formula: Runtime = 460.8Wh)÷ Actual Device Power Consumption. For example, a device consuming 60W will run approximately 7.6 hours. Note that actual power consumption may vary depending on usage scenarios.



Q3: How long does it take to fully charge the power station?



A: Approximately 5 hours via AC power outlet. Approximately 6 hours using a 90W solar panel (sold separately).



Q4: Can the power station charge while in use?



A: Yes, you can use it to power other devices while simultaneously charging the power station itself.



Q5: What is the output waveform of the power station? What are its advantages?



A: The power station delivers pure sine wave AC output, ensuring all types of electrical equipment operate efficiently, safely, and quietly for extended periods.
